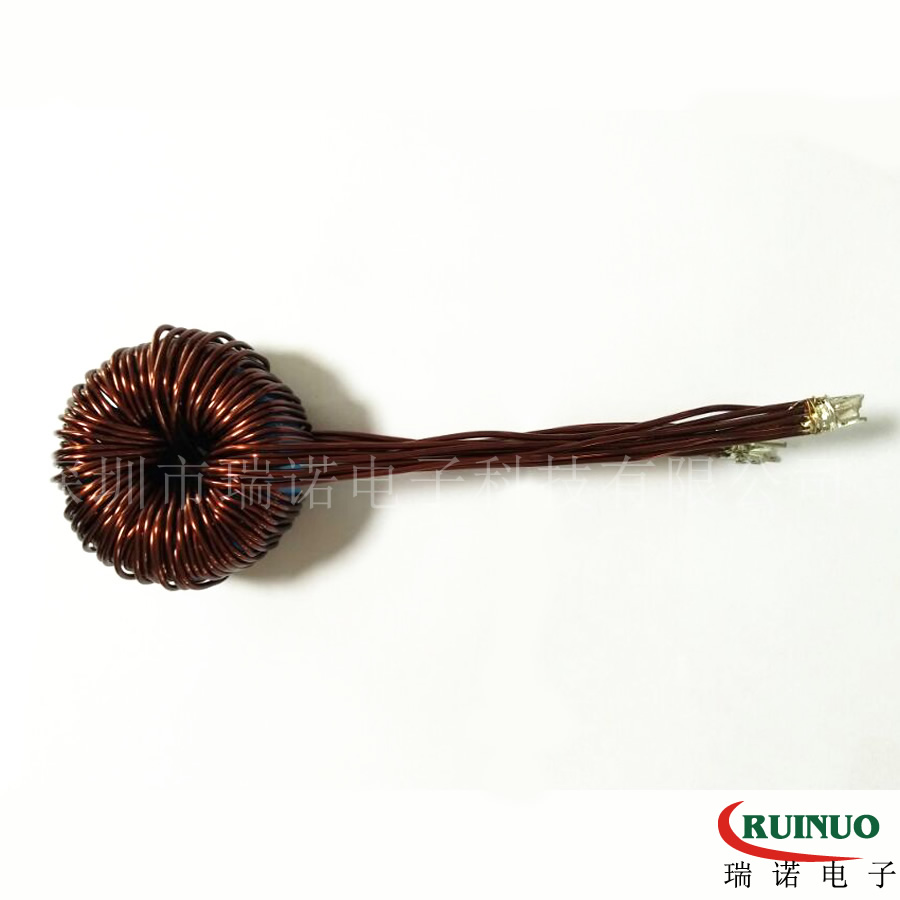

Features: Small size, light weight, high power density, suitable for miniaturization of products. Excellent EMC / EMI anti-jamming performance.
Low-frequency loss, low temperature rise, suitable for energy storage / filtering, lead-out convenient, easy to meet the "safety regulations" requirements of various countries.
Role: Energy storage, filtering, isolation, impedance matching, signal transmission.
Uses: charging pile power, solar power, wind power, car power, switching power supply, UPS / EPS inverter, inverter welding machine, household appliances, communications equipment, medical equipment, audio / video equipment, green lighting equipment.
Note:
1: According to customer requirements to develop different size products
2: H for horizontal installation, V for vertical installation
Low-frequency loss, low temperature rise, suitable for energy storage / filtering, lead-out convenient, easy to meet the "safety regulations" requirements of various countries.
Role: Energy storage, filtering, isolation, impedance matching, signal transmission.
Uses: charging pile power, solar power, wind power, car power, switching power supply, UPS / EPS inverter, inverter welding machine, household appliances, communications equipment, medical equipment, audio / video equipment, green lighting equipment.
| Model (bare ring) | Model | U Value | AL Value±8% | section/cm2 |
| 57.2*35.6*14 | 225-075A | 75 | 94 | 1.444 |
| 225-090A | 90 | 112 | ||
| 225-125A | 125 | 156 | ||
| 57.2*26.4*15.2 | 226-026A | 26 | 60 | 2.290 |
| 226-060A | 60 | 138 | ||
| 226-075A | 75 | 175 | ||
| 226-090A | 90 | 207 | ||
| 226-125A | 125 | 287 | ||
| 62*32.6*25 | 250-026A | 26 | 83 | 2.29 |
| 250-060A | 60 | 192 | ||
| 250-075A | 75 | 240 | ||
| 250-090A | 90 | 288 | ||
| 250-125A | 125 | 400 | ||
| 68*36*20 | 268-026A | 26 | 62 | 3.104 |
| 268-060A | 60 | 143 | ||
| 268-075A | 75 | 179 | ||
| 268-090A | 90 | 215 | ||
| 268-125A | 125 | 298 | ||
| 74.8*45.3*35 | 290-026A | 26 | 89 | 5.040 |
| 290-060A | 60 | 206 | ||
| 290-075A | 75 | 257 | ||
| 290-090A | 90 | 309 |
| Model (bare ring) | Model | U value | AL value ± 8% | Section / cm2 |
| 74.8*45.3*35 | 290-125A | 125 | 429 | 5.040 |
| 77.8*49.2*12.7 | 300-026A | 26 | 30 | 1.770 |
| 300-060A | 60 | 68 | ||
| 300-075A | 75 | 85 | ||
| 300-090A | 90 | 102 | ||
| 300-125A | 125 | 142 | ||
| 77.8*49.2*15.9 | 301-026A | 26 | 37 | 2.27 |
| 301-060A | 60 | 85 | ||
| 301-075A | 75 | 107 | ||
| 301-090A | 90 | 128 | ||
| 301-125A | 125 | 178 | ||
| 101.6*57.15*16.51 | 400-026A | 26 | 47 | 3.5226 |
| 400-060A | 60 | 112 | ||
| 400-075A | 75 | 137 | ||
| 400-090A | 90 | 164 | ||
| 400-125A | 125 | 228 | ||
| 101.6*57.15*13.59 | 401-026A | 26 | 40 | 2.9716 |
| 401-060A | 60 | 92 | ||
| 401-075A | 75 | 115 | ||
| 401-090A | 90 | 139 | ||
| 401-125A | 125 | 192 | ||
| 132.54*78.59*20.32 | 520-026A | 26 | 54 | 5.3471 |
| Model (bare ring) | model | U value | AL value ± 8% | Section / cm2 |
| 132.54*78.59*20.32 | 520-060A | 60 | 124 | 5.3471 |
| 520-075A | 75 | 155 | ||
| 520-090A | 90 | 187 | ||
| 520-125A | 125 | 259 | ||
| 132.54*78.59*25.4 | 521-026A | 26 | 67.6 | 6.710 |
| 521-060A | 60 | 156 | ||
| 521-075A | 75 | 195 | ||
| 521-090A | 90 | 234 | ||
| 521-125A | 125 | 325 | ||
| 165*88.9*50.8 | 650-026A | 26 | 160 | 18.920 |
| 650-060A | 60 | 368 | ||
| 650-075A | 75 | 460 | ||
| 650-090A | 90 | 552 | ||
| 650-125A | 125 | 767 |
1: According to customer requirements to develop different size products
2: H for horizontal installation, V for vertical installation
